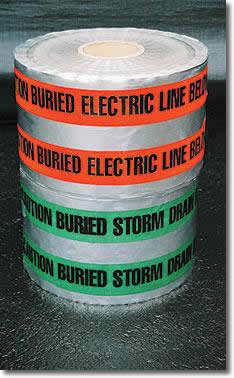

Safe Guard Signs: Detectable Underground Tape

DETECTABLE UNDERGROUND TAPE

Avoid the problem of costly dig-ins to locate buried, non-metallic cables and pipelines with our Detectable Underground Tape.
Providing you with double protection, this tape is easily located with any industrial grade, non-ferrous metal detector before
you dig, while its highly visible colors make it easy to locate after the dig has begun.
To install, simply place a length of tape in the excavated ditch above the installation. The tape should then be placed
6" to 12" below grade. Installation of Detectable Underground Tape should be supervised by a professional or
authority concerned with the proper use of the product.

All legends are available in 2", 3" and 6" widths x 1000 ft. long.
PRINTED BLACK ON SOLID COLOR BACKGROUND.

Cat.#	Legend	Color
DUT-01	CAUTION - Buried Electric Line Below	R
DUT-02	CAUTION - Buried Gas Line Below	Y
DUT-03	CAUTION - Buried Pipeline Below	Y
DUT-04	CAUTION - Buried Sewer Line Below	G
DUT-05	CAUTION - Buried Telephone Line Below	O
DUT-06	CAUTION - Buried Water Line Below	B
DUT-07	CAUTION - Buried Oil Line Below	Y
DUT-08	CAUTION - Buried CATV Line Below	O
DUT-09	CAUTION - Buried High Voltage Line Below	R
DUT-10	CAUTION - Buried Fiber Optic Line Below	O
DUT-11	CAUTION - Buried Reclaimed Water Line Below	P
DUT-12	CAUTION - Buried Storm Drain Line Below	G
DUT-13	CAUTION - Buried Electric Line Below	Y

Conforms to the following specifications:

NTSB-PSS-73-1
GSA Public Buildings Service Guide
American Gas Association 72-D-56
API RP 1109
OSHA 1926-956 (c) (1)
APWA Uniform Color Code
DOT Office of Pipeline Safety USAS B31.8
Federal Gas Safety Regulations S 192-321 (e)

STANDARD COLORS INCLUDE:
(R) RED	(B) BLUE
(O) ORANGE	(Y) YELLOW
(G) GREEN	(P) PURPLE
*EXAMPLE:* A 6" CAUTION-Buried Pipeline Below Roll is DUT-03-6
