Pipe & Electrical Markers

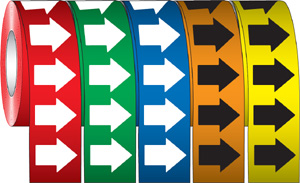

  DIRECTIONAL ARROW ROLLS


Directional Arrow rolls have OSHA/ANSI approved colors for pipe and conduit marking.
Pressure-sensitive vinyl arrows indicate flow direction of pipe contents.
Can be used alone or with pipe markers. 2" x 18 yard rolls.
Catalog # Legend
ADA-1
 White on Red
ADA-2
 White on Green
ADA-3
 White on Blue
ADA-4
 Black on Orange
ADA-5
 Black on Yellow

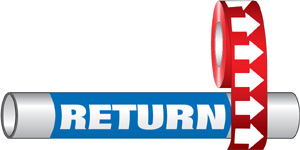

  PIPE MARKERS

Pressure-sensitive vinyl markers comply with ANSI size and color code standards.
Pipe markers are sold in packs of 5 or 25. Rolls have 72 markers perforated every 9 inches.


LegendColorCatalog #Roll Form
Acetone
Y
MPM-3
Acid
Y
MPM-4
Check Mark
Air
B
MPM-5
Check Mark
Air
Y
MPM-6
Check Mark
Ammonia
Y
MPM-8
Check Mark
Argon
B
MPM-9
Check Mark
Asbestos Free Insulation
B
MPM-12
Blow-off Water
Y
MPM-13
Boiler Blow Down
Y
MPM-14
Boiler Feed
Y
MPM-16
Check Mark
Boiler Feed Water
Y
MPM-18
Brine
G
MPM-19
Check Mark
Carbon Dioxide
Y
MPM-20
Check Mark
Caustic
Y
MPM-21
Check Mark
Chilled Water
G
MPM-24
Check Mark
Chilled Water Return
G
MPM-25
Check Mark
Chilled Water Supply
G
MPM-26
Check Mark
Chlorine
Y
MPM-27
Check Mark
Circulating Water
G
MPM-28
Check Mark
City Gas
Y
MPM-29
Check Mark
City Water
G
MPM-30
Check Mark
Cold Water
G
MPM-31
Check Mark
Cold Water Return
G
MPM-32
Check Mark
Cold Water Supply
G
MPM-33
Check Mark
Compressed Air
B
MPM-34
Check Mark
Compressed Air
Y
MPM-35
Check Mark
Condensate
Y
MPM-36
Check Mark
Condensate Return
Y
MPM-37
Check Mark
Condensate Supply
Y
MPM-38
Check Mark
Condenser Water
G
MPM-39
Condenser Water Return
G
MPM-40
Condenser Water Supply
G
MPM-41
Cooling Water
G
MPM-42
Check Mark
Danger Asbestos Insulation
Y
MPM-51
Deionized Water
G
MPM-44
Discharge
G
MPM-45
Distilled Water
G
MPM-52
Domestic
Y
MPM-46
Domestic
G
MPM-47
Check Mark
Domestic Cold Water
G
MPM-48
Check Mark
Domestic Hot Water
Y
MPM-49
Check Mark
Drain
G
MPM-50
Check Mark
Drain Water
G
MPM-53
Check Mark
Exhaust
Y
MPM-54
Exhaust Air
B
MPM-55
Exhaust Steam
Y
MPM-56
Check Mark
Feed
Y
MPM-57
Feed
G
MPM-58
Filtered Water
G
MPM-61
Fire Protection Water
R
MPM-62
Freon
G
MPM-63
Fresh Water
G
MPM-64
Check Mark
Fuel Gas
Y
MPM-65
Fuel Oil
Y
MPM-66
Check Mark
Gas
Y
MPM-67
Check Mark
Glycol
Y
MPM-68
Check Mark
Heat
Y
MPM-69
Heating
Y
MPM-73
Check Mark
Heating Return
Y
MPM-74
Check Mark
Heating Supply
Y
MPM-75
Check Mark
Heating Water Return
Y
MPM-175
Check Mark
Heating Water Supply
Y
MPM-176
Check Mark
Helium
B
MPM-76
Check Mark
Hi-Pressure Air
Y
MPM-77
Check Mark
Hi-Pressure Cond.
Y
MPM-78
Check Mark
Hi-Pressure Gas
Y
MPM-79
Check Mark
Hi-Pressure Steam
Y
MPM-80
Check Mark
Hi-Pressure Water
Y
MPM-81
Check Mark
Hot Water
Y
MPM-82
Check Mark
Hot Water Return
Y
MPM-83
Check Mark
Hot Water Supply
Y
MPM-84
Check Mark
Hydrogen
Y
MPM-85
Check Mark
Industrial Water
G
MPM-86
Inert Gas
G
MPM-87
Instrument Air
B
MPM-88
Lo-Pressure Air
B
MPM-93
Check Mark
Lo-Pressure Cond.
Y
MPM-94
Check Mark
Lo-Pressure Gas
Y
MPM-95
Check Mark
Lo-Pressure Steam
Y
MPM-96
Check Mark
Lo-Pressure Water
G
MPM-97
Make-Up Water
G
MPM-98
Check Mark
Medical Air
B
MPM-99
Check Mark
Medium Pressure Air
B
MPM-100
Medium Pressure Steam
Y
MPM-101
Natural Gas
Y
MPM-106
Check Mark
Nirtogen
G
MPM-107
Check Mark
Nitrous Oxide
Y
MPM-108
Non-Potable Water
Y
MPM-109
Check Mark
Oil
Y
MPM-110
Check Mark
Oxygen
Y
MPM-111
Check Mark
Oxygen
B
MPM-112
Check Mark
Plant Air
Y
MPM-113
Check Mark
Plant Water
G
MPM-114
Check Mark
Plumbing Vent
G
MPM-115
Potable
G
MPM-118
Check Mark
Potable Water
G
MPM-119
Check Mark
Process Water
Y
MPM-120
Check Mark
Propane Gas
Y
MPM-121
Check Mark
Rain Water
G
MPM-123
Check Mark
Raw Water
G
MPM-124
Check Mark
Refrigerated Liquid
Y
MPM-125
Refrigerated Suction
Y
MPM-126
Refrigeration
G
MPM-127
Return
R
MPM-130
Check Mark
Return
Y
MPM-131
Check Mark
Return
B
MPM-132
Check Mark
Return
G
MPM-133
Check Mark
Roof Drain
G
MPM-128
Sanitary Drain
G
MPM-134
Sanitary Sewer
G
MPM-135
Check Mark
Solvent
Y
MPM-136
Sprinkler-Fire
R
MPM-137
Check Mark
Sprinkler-Water
R
MPM-138
Check Mark
Steam
Y
MPM-145
Check Mark
Steam Return
Y
MPM-146
Check Mark
Steam Supply
Y
MPM-147
Check Mark
Storm Drain
G
MPM-148
Check Mark
Storm Sewer
G
MPM-149
Check Mark
Storm Sewer
G
MPM-150
Suction
Y
MPM-151
Supply
Y
MPM-153
Check Mark
Supply
G
MPM-154
Check Mark
Supply
R
MPM-155
Check Mark
Supply
B
MPM-156
Check Mark
Toluene
Y
MPM-159
Tower Water
G
MPM-157
Check Mark
Treated Water
G
MPM-158
Check Mark
Unsafe Water
Y
MPM-160
Check Mark
Vacuum
Y
MPM-161
Check Mark
Vacuum
G
MPM-162
Check Mark
Vapor
Y
MPM-163
Check Mark
Vent
Y
MPM-164
Check Mark
Vent
G
MPM-165
Check Mark
Waste
Y
MPM-166
Check Mark
Waste
G
MPM-167
Check Mark
Waste Water
G
MPM-168
Check Mark
Water
Y
MPM-169
Check Mark
Water
G
MPM-170
Check Mark
Well Water
G
MPM-171
Check Mark
Directional Arrow
Y
MPM-180
Directional Arrow
G
MPM-181
Directional Arrow
R
MPM-182
Directional Arrow
B
MPM-183
Directional Arrow
O
MPM-184
Directional Arrow
W
MPM-185
Light and Power
O
EME-8
Check Mark
Single Phase
O
EME-11
Check Mark
Three Phase
O
EME-12
Check Mark
AC
O
EME-86
Check Mark
DC
O
EME-87
Check Mark
Emergency
O
EME-88
Check Mark
Lighting
O
EME-89
Check Mark
Power
O
EME-41
Check Mark
110 Volts
O
EME-13
Check Mark
115 Volts
O
EME-14
Check Mark
120 Volts
O
EME-15
Check Mark
120/208 Volts
O
EME-30
208 Volts
O
EME-16
Check Mark
220 Volts
O
EME-17
Check Mark
230 Volts
O
EME-18
Check Mark
240 Volts
O
EME-19
Check Mark
250 Volts
O
EME-31
277 Volts
O
EME-20
Check Mark
277/480 Volts
O
EME-32
440 Volts
O
EME-21
Check Mark
460 Volts
O
EME-33
Check Mark
480 Volts
O
EME-23
Check Mark
550 Volts
O
EME-34
Check Mark
600 Volts
O
EME-35
Check Mark



Home
History
Contents
Custom Signs
Contact Us
Materials
Place Order

© 2018 Safe Guard Signs

GREEN (G)
Green (G) Cold Water
liquid or liquid mixtures - low hazard
BLUE (B)
Blue (B) Return
gas or gaseous mixtures - low hazard
YELLOW (Y)
Yellow (Y) Hi-Pressure Steam
liquid or gases that are flammable or explosive, chemically active, radioactive of
extreme temperature or pressure
RED (R)
Red (R) Sprinkler-Water
fire-quenching materials
ORANGE (O)
Orange (O) 110 Volts
electrical voltage
Pipe Marking Specs Chart
Size
Code
Marker
Size
Letter
Height
Pipe (O.D.)
Diameter
7
1 7/8"x7"
2/card
3/4"
7/8"-2 3/8"
12
2 1/4"x12"
1/card
1 1/4"
2 ½"-7 7/8"
24
4 ½"x24"
1/card
3 ½"
8" +
R
2"x9"
72/roll
1 1/4"
Over 3"
Please indicate size code when ordering. EXAMPLE: A2 1/4" x 12" CHLORINE marker is MPM-27-12
